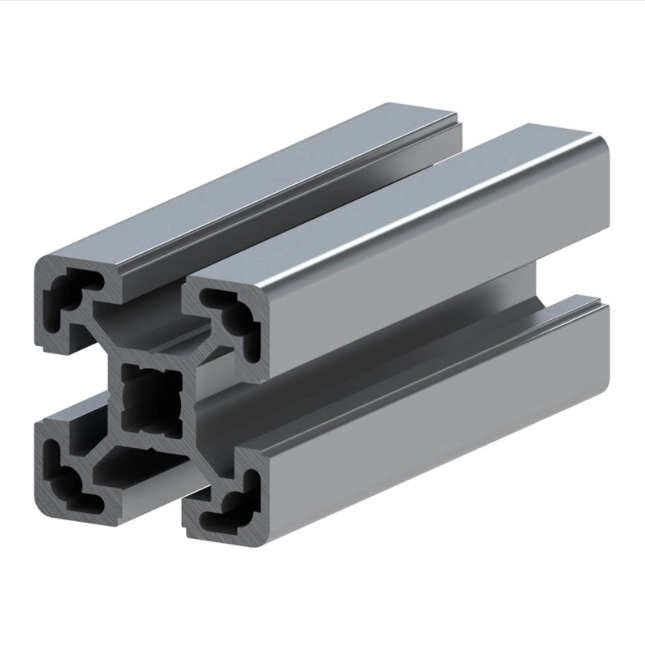

Charcoal Anodized Film Thickness AA10 Aluminum Profile System
Anodized Aluminum Profile System Description
The industrial aluminum profile system is also known as the industrial aluminum extrusion guide or the industrial aluminum alloy profile. Aluminum is a primary component in the industrial aluminum profile. Aluminum bars are hot melted and extruded to obtain aluminum materials with different cross-section shapes, but the proportion of alloys is different, so the mechanical properties and application fields of industrial aluminum profiles are also different.
In general, industrial aluminum profiles refer to all aluminum profiles other than those for building doors, windows, curtain walls, indoor and outdoor decorations, and building structures.
| Item | Charcoal Anodized Aluminum Profile System / Aluminum Extrusion Profile System |
| Material | 6061, 6063 |
| Temper | T4-T6/T66 |
| Surface treatment | Powder Coating in RAL Color, Anodizing(AA10/15/20/25), Sandblasting, Brushing, Passivation, Silk screen, Mechanical/Chemical Polishing, Wood grain coated /Wooden transfer, Galvanise,(Nickel/Tin/Chrome/Copper) Plating, PVDF, Matt, etc. |
| Shape | Flat/Square/Round/Hollow/Oval/Triangle
U type/L type/T type /H type |
| Deep Process | Aluminium profile extruding, Precious milling, Cutting, Punching, Bending, Tapping, Drilling, CNC lathe etc.
Tolerance: length can be ±0.2mm, hole can be ±0.05mm. |
| Wall thickness | > 0.9mm |
| Section size | Square: ≤ 150*150mm |
| Rectangle:≤ 250*50mm |
| Round: ≤ ∅170mm |
| Package | Inner plastic paper/PE paper interleaving each piece;
Outer fixed by plywood or pallets with shipping mark;
Or as required. |
| Delivery time | 15-25 days after deposit |
Aluminum Profile System Producing Process
